Brass Door Handle Polishing

Parameter	Specification
Unit Type	CNC Polishing
Polishing Consumables	Cloth wheel, solid wax
Control System	HUST (Taiwan)
Servo Drive	HUST (Taiwan)
Switchgear	Schneider
Contactor	Siemens AG

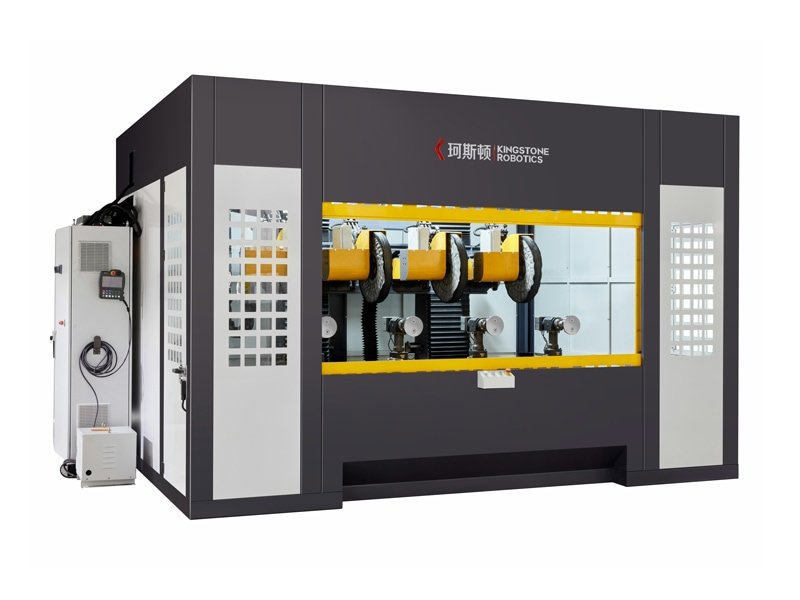

Solution Name: Brass Door Handle Six Axis Four Station CNC Polishing Machine

Safety Working of The Cloth Wheel CNC Polishing Machine

1. During doing polishing of the automatic polishing machine, the noise value measured outside the protective cover is less than 80 decibels. 2. Emergency stop button, safety check switch: When the safety door or operating window of the device is open, the power system of the device remains completely stopped. 3. In order to avoid the failure of workpiece clamping, the workpiece is ejected outward and the eject direction is designed downward; Operated window glass is made of double layer tempered glass.

Dust Removal Interface

KS will reserve 2 dust collecting holes above the workshop (hole diameters according to customer requirements), customers can connect the interface with their own dust control system.

Description	Unit	Specification
Table
Table size (LxW)	mm	2760*395
Height from ground (without fixture)	mm	890
Fixture rotating speed	rpm	20
Number of work stations		4
Station size/Working Dia. (max)	mm	350
Number of Program Stores	set	≥500
Table Type		1. Movable – table moving by the screw rod/ball screw. 2. Driven by servo motor.

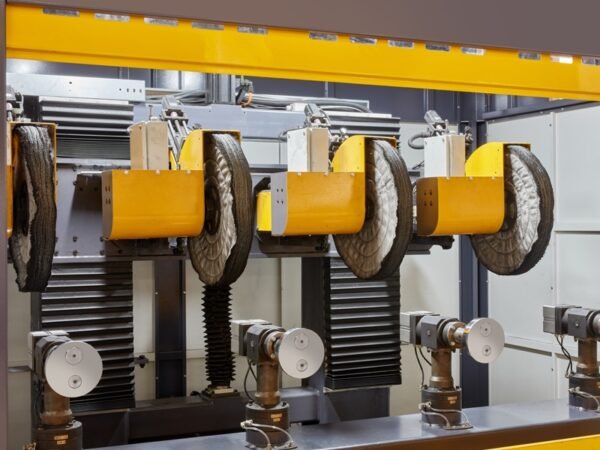

Buffing/Polishing Heads
Number of head		4
Main Spindle Polishing Motor	KW	11.6 (4 nos. x 2.9 kw each)
Permissible Work Height	mm	300
Polishing wheel size (consumable)	mm	6006010 mm
Polishing compound (consumable)	Type	Solid Wax
Polishing compound size (consumable)	mm	3506010 mm
Polishing compound application		Automatic device for the solid compound feeding to the polishing wheel on a regular timing basis.

This Service Include

Sourcing Automated Polishing Machine？

Our core technologies—automatic constant-pressure control, multifunctional fixtures, composite polishing wheels, and a proprietary software system—enable precise, consistent finishing on complex surfaces. Our solution fills a critical gap in the surface treatment industry.
